Click the image to see the section size and grain
| Brand | Houthandel Jan Sok |
|---|---|
| Finish | Grijs |
| Material | Rubber |
| Volume | 1 piece |
| Stock | 100 in stock |
Product description
This rubber transition ring Ø50 x Ø32 connects a 32 mm waste to a 50 mm connection, for example a washbasin or hand basin trap tube to a 50 mm PP trap bend or drain. The outside of the ring (Ø50 mm) goes into the socket, and the 32 mm pipe slides into the opening on the inside. The rubber closes around the pipe and makes the joint watertight without glue. The transition ring is made by Dyka from black SBR rubber. It is intended as a loose ring for PP trap bends in household drainage (HT). Order the transition ring online or collect it from Houthandel Jan Sok at Celsius 10 in Meppel.
Key features
Why this transition ring is practical:
- Ø50 x Ø32 mm: transition from a 32 mm waste to a 50 mm connection.
- No glue: the rubber grips the pipe; you simply push the joint together.
- For PP trap bends: loose ring for connecting a trap to the drain.
- SBR rubber: flexible material that seals watertight.
- Dyka: part from a Dutch manufacturer of plastic piping systems.
Applications
Suitable for, among others:
- Connecting a 32 mm washbasin or hand basin trap tube to a 50 mm drain.
- Coupling a 32 mm waste pipe to a 50 mm PP trap bend.
- Replacing a worn or lost transition ring.
- Connections under a kitchen unit or bathroom cabinet.
Connects to
The transition ring fits:
- A socket or trap connection of Ø50 mm, into which the ring is placed.
- A waste pipe or trap tube of Ø32 mm, which slides into the ring.
Installation
Fit the transition ring in four steps:
- Clean: clean and degrease the 50 mm socket and the end of the 32 mm pipe.
- Fit the ring: press the transition ring fully into the 50 mm socket.
- Insert the pipe: push the 32 mm pipe through the ring with a twisting motion; a little lubricant makes this easier.
- Check: run water and check that the joint stays dry.
Product specifications
Technical details at a glance:
| Property | Value |
|---|---|
| Type | loose rubber transition ring for PP trap bend |
| Diameter | Ø50 x Ø32 mm |
| 50 mm connection | spigot (into the socket) |
| 32 mm connection | socket (for the pipe) |
| Material | rubber (SBR) |
| Colour | black |
| Application | household drainage (HT) |
| Manufacturer | Dyka |
| Article number | 20020651 |
| EAN | 8716936000473 |
| Volume | 1 piece |

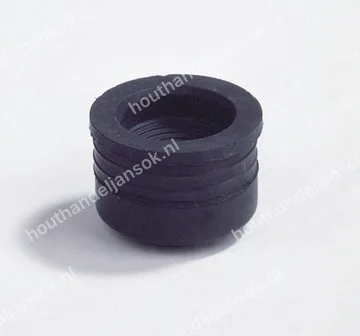

Rubber transition ring Ø50 x Ø32
Loose rubber transition ring by Dyka for a PP trap bend. The 50 mm side fits into the trap or drain connection, and an Ø32 mm waste pipe or trap tube slides into the inside. No glue needed. Sold per piece.
Delivery and pickup
-
Pickup in Meppel: Free (ready after confirmation)
-
Truck delivery with a Moffett: €125 fixed delivery charge
-
Free delivery on orders from €2,500
Cut-to-size or custom-processed timber is non-returnable. Stock lengths: see returns policy.
Frequently asked questions
How do I connect a 32 mm trap to a 50 mm drain?
Place this rubber transition ring in the 50 mm connection and slide the 32 mm trap tube into the ring. The rubber closes around the pipe, so the joint is watertight.
Do I need to glue a rubber transition ring?
No. The ring grips the pipe and the socket. You make the joint by pushing the parts together; no glue is needed.
What is this transition ring intended for?
It is a loose transition ring for PP trap bends. Use it to connect a 32 mm pipe or trap tube to a 50 mm connection in household drainage.
